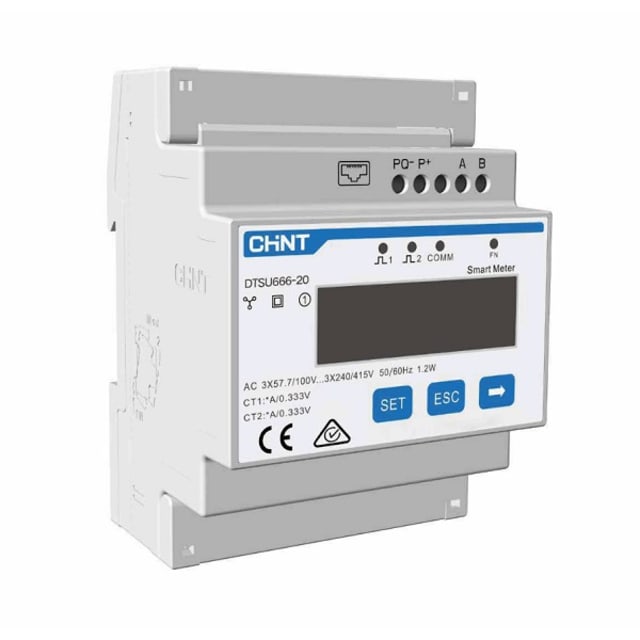

Sungrow – smart power meter 3P (excl CT 100 of 250 A) – UT000138
The Three-Phase Smart Energy Meter, model DTSU666-20, is a versatile device designed for monitoring and measuring energy consumption in three-phase electrical systems. It is suitable for use in various applications, including solar switch, PV strings, hybrid inverter, load switch, and network metering. The meter features a compact design with dimensions of 118mm (width) x 72mm (height) x 65.5mm (depth) and is equipped with advanced functionality to ensure accurate energy measurement. Technical Data: Nominal voltage: 3X57.7/100V…3X240/415V Input voltage range: V…3X240/415V Current Transformer: CT1:*/0.333V, CT2:*/0.333V Grid frequency: 50/60Hz Operating temperature: -20°C to +55°C Relative humidity: Up to 95% (non-condensing) Dimensions (W x H x D): 118mm x 72mm x 65.5mm
133.25€
11 en stock
11 en stock
| Quantité | Prix | Remise |
|---|---|---|
| 0-2 | 133.25€ | 0% |
| 3-5 | 130.59€ | 2% |
| 6-10 | 129.25€ | 3% |
| 11+ | 127.92€ | 4% |
Description
Caractéristiques techniques
| Type | Compteur d’énergie triphasé |
|---|---|
| Modèle | DTSU666-20 |
| Mesure | Indirecte avec transformateurs de courant |
| Plage de courant CT | 100 A ou 250 A |
| Sortie CT | 333 mV |
| Tension nominale | 230 V AC phase-neutre / 400 V AC phase-phase |
| Plage de tension AC | 50 à 280 V AC phase-neutre / 85 à 485 V AC phase-phase |
| Fréquence réseau | 50/60 Hz |
| Classe de précision | Classe 1 |
| Consommation | ≤ 1,5 W |
| Interface de communication | RS485 |
| Nombre d’entrées CT | 6 |
| Température de fonctionnement | -25 °C à +70 °C |
| Humidité relative | < 75 % (sans condensation) |
| Indice de protection | IP20 |
| Altitude maximale | 2 000 m |
| Montage | Rail DIN 35 mm |
| Dimensions (L x H x P) | 118 x 72 x 65,5 mm |
| Poids | 0,8 kg |
